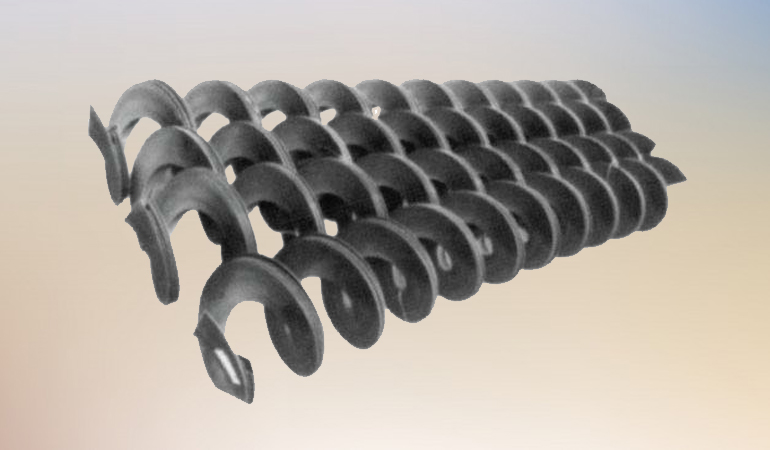

Continuous Cold Rolled Screw Flights
Based in Sidhpur (Gujarat), the company is recognized as a prominent Importer Distributor & Supplier of Continuous Cold Rolled Screw Flights.
Material of Construction : Carbon steel / Stanless steel
Features
- Continues length (3 mtr. long)
- Smooth finish surface
- Uniform shape
- High precision
- Good tensile strength
- Wear resistance
| Technical Specifications | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Standard Model | 100 | 125 | 160 | 175 | 200 | 250 | 300 | 320 | 400 | 500 | 630 | 800 | |
| Outer Diameter (mm) | 100 | 125 | 160 | 175 | 200 | 250 | 300 | 320 | 400 | 500 | 630 | 800 | |
| Inner Diameter (mm) | 32 | 32 | 42 | 38 | 48 | 60-73 | 60-73 | 73 | 114 | 141 | 168 | 219 | |
| Pitch (mm) | 100 | 100-125 | 120-160 | 175 | 160-200 | 200-250 | 250-300 | 250-320 | 320-400 | 400 | 450-500 | 500 | |
| Thickness of plate (mm) | 3.5 | 3.5 | 3.5 | 3.5 | 3.5-5 | 3.5-5 | 3.5-5 | 3.5-5 | 5-6 | 5-6 | 5-6 | 5-6 | |
| Standard Length | 3 Mtrs. | ||||||||||||
