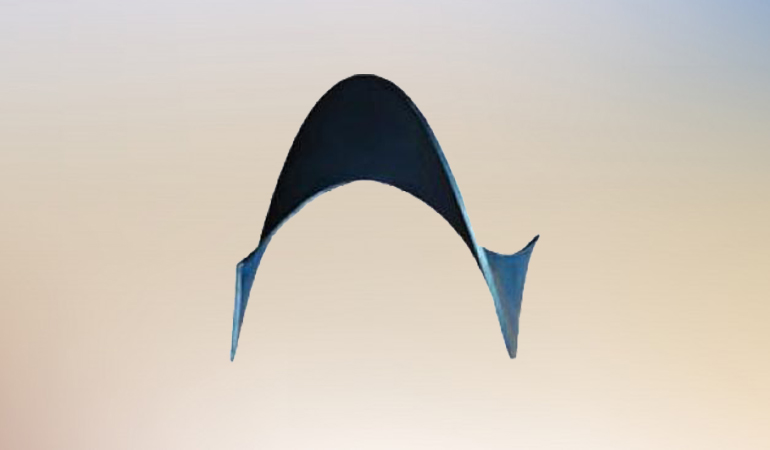

Sectional Screw Flights
We are one of the reliable Importer Distributor & Supplier of Sectional Screw Flights from Sidhpur (Gujarat). We use the finest grade metal to manufacture Sectional Screw Flights.
Material : Carbon Steel, Low Alloy Steel, Stainless Steel
Features
- A single pitch construction with consistent cross sectional thickness between inner & outer edges
- Every screw flight section is formed accurately up to the customers’ size.
- A wide range of size up to 2000 mm in diameter, 40 mm in thickness, 1500 mm in pitch are available
- Ribbon, Tapered & Variable Pitch Flights are available on application
- Flights can also be hard faced or coated with wear protection materials
- High precision and customized size can be made
Specification
- Any Sectional screw flights with size coming in the range of the following table can be made
| Technical Specifications | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pitch (mm) | Minimum Inner Diameter (mm) | Maximum Outer Diameter (mm) | Thickness (mm) | |||||||||
| 60-150 | 30 | 480 | Carbon Steel < 50mm Manganese Steel < 50mm Stainless Steel < 40 mm |
|||||||||
| 150-200 | 50 | 520 | ||||||||||
| 200-300 | 60 | 670 | ||||||||||
| 300-450 | 90 | 950 | ||||||||||
| 450-500 | 135 | 1150 | ||||||||||
| 500-650 | 150 | 1350 | ||||||||||
| 650-850 | 200 | 1400 | ||||||||||
| 850-950 | 250 | 1450 | ||||||||||
| 950-1200 | 300 | 1600 | ||||||||||
| 1200-1250 | 400 | 1800 | ||||||||||
| 1250-1300 | 450 | 2000 | ||||||||||
